WinTV-HD has these great features:

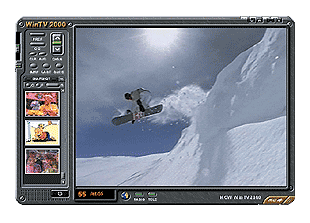

	Watch TV in a resizeable window on your PC screen, or full screen on a high definition monitor.
	Supports digital TV: ATSC, cable 8VSB or clear QAM, in all 18 ATSC formats up to 1080i.
	Supports NTSC TV from 125-channel cable ready tuner. Output is line-doubled and filtering for display on hi-def monitors. Also displays from external audio/video source.
	Dual monitor mode for simultaneous PC screen and RGB or Y-Pb-Pr output for large screen digital TV sets.
	Dolby Digital surround sound decoder (software decode) for Digital TV programs. Also includes S/PDIF output for use with “Home Theater” audio systems.
	User selectable output in 4:3 or 16:9 formats.
	Includes remote control.
	Windows® Plug & Play for easy installation.
	Single slot PCI card with bus-master technology.

And you can create the ultimate Home Theater system with the WinTV-HD. Display hi-def TV on rear projection, direct view or large screen plasma monitors directly from the WinTV-HD!

The WinTV-HD is loaded with features usually only seen on high-end television sets, like previewing 16 channels at once. And it goes further! Snap and print stills from whatever you’re watching. And with Hauppauge’s WinTV-SnapShot application, you can capture still video images in adjustable high resolution modes to 1,600 x 1,200 pixels!

WinTV-HD decodes all ATSC Digital TV formats, 480i 480p, 720p and 1080i. After decoding, the digital TV picture is either scaled for display in a resizeable window on your PC screen, or displayed full screen in true High Definition.

Digital TV has arrived! The new age of Digital TV is here, bringing to television the sharp images of DVD movies, and the crisp audio you would hear from audio CD's. Plus it adds Dolby Digital sound for a complete "home theater" experience. Digital TV will replace conventional TV broadcasts over the next few years as more TV shows are converted to digital. In the meantime, WinTV-HD allows you to view both the conventional TV channels and the new Digital TV channels on your PC screen.

Digital TV is being broadcast in many areas of the United States right now (a list of Digital TV broadcasters is included in this box, or see our web site). Digital TV is broadcast over the airwaves, so you need an antenna (a rooftop antenna is recommended for best reception) to receive Digital TV. The WinTV-HD has two connections: one for cable TV (or a satellite converter box or VCR) and one for the antenna. The WinTV-HD software scans for both conventional TV channels and Digital TV channels.

The WinTV-HD seamlessly integrates both your conventional analog TV channels (from cable TV, TV antenna or satellite TV decoder) and the Digital TV channels being broadcast in your area. You do not need to know on what channels Digital TV is being broadcast; the WinTV-HD automatically scans for both conventional and Digital TV channels.

System Requirements
	PC with Pentium®II (400MHz minimum recommended)
	TV antenna to receive Digital TV channels
	Cable TV connection to receiver analog TV channels
	Microsoft® Windows® 98/Me/2000/XP
	Free PCI slot
	Sound card
	CD-ROM drive
	VGA card (PCI or AGP) meeting the specifications on opposite box flap

Included in this package
	WinTV-HD PCI bus card with ATSC Digital TV and Dolby Digital decoding - plus 125 channel cable-ready TV tuner
	Remote control transmitter and receiver
	WinTV CD-ROM includes:
		WinTV2000 application for TV in a window, with WinTV-Snapshot for high resolution image captures
		Installation and reference manual
	List of U.S. Digital TV stations

Note:
* A TV antenna is required to receive Digital TV channels in most areas of the U.S. A rooftop antenna is recommended.
